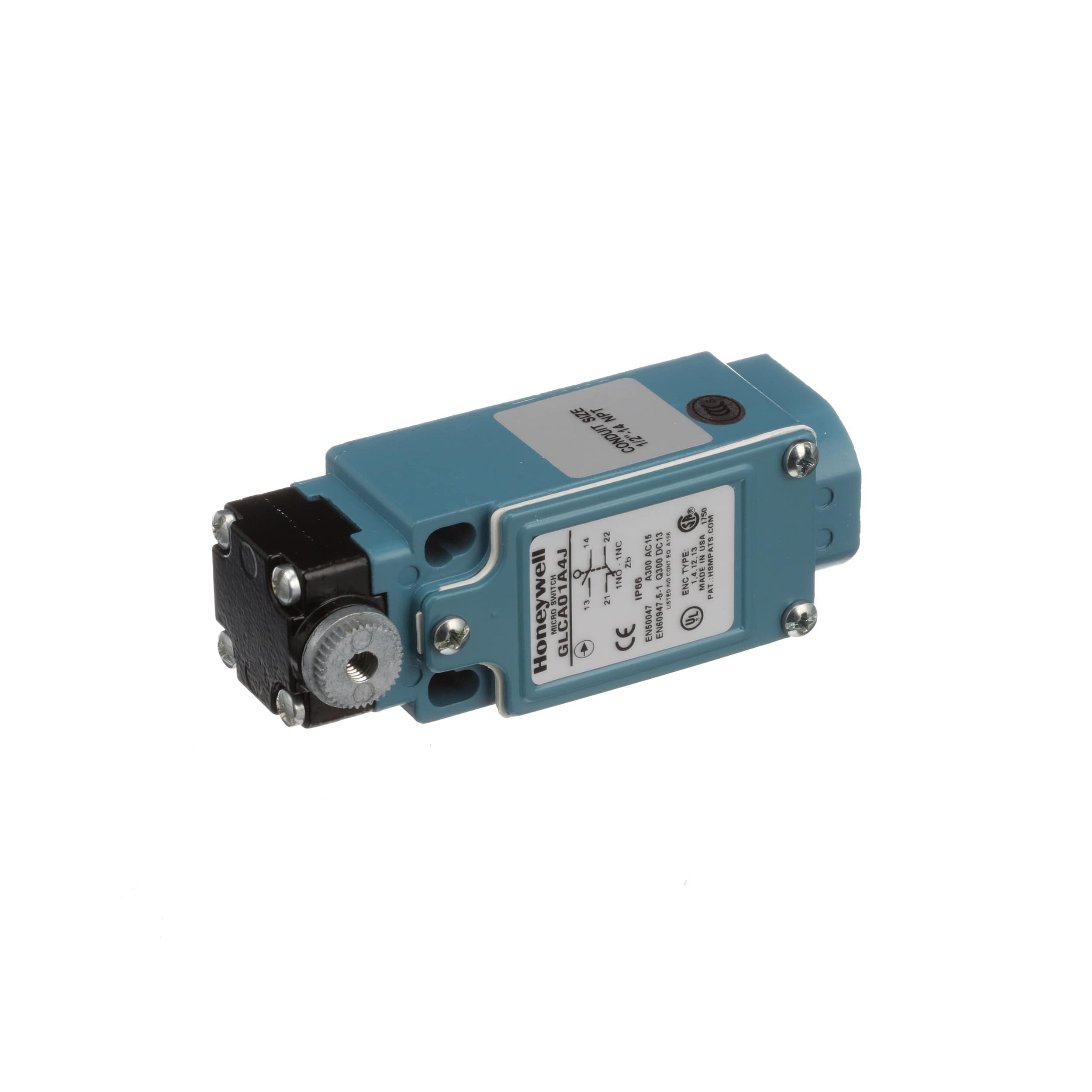

SPDT snap-action switch with a momentary function, featuring a 10A contact current rating and a 300V AC voltage rating. This panel-mount switch offers a 125V DC rated voltage and a 0.55A DC current rating, with screw terminals for termination. Its side rotary adjustable rod actuator provides a right-angle orientation and a 2-position operation. Built for durability, it boasts a mechanical life of 10,000,000 cycles and operates within a temperature range of -40°C to 85°C, with IP67 and IP66 ratings for waterproof and dust-tight protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell GLCA01A4J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Rotary |
| Approvals | UL, CSA, CE |
| Package/Case | 120 |
| Contact Current Rating | 10A |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 55mm |
| Lead Free | Lead Free |
| Length | 30.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 240V |
| Max Voltage Rating (DC) | 250V |
| Mechanical Life | 10000000Cycles |
| Mount | Chassis Mount, Screw |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 0.12N |
| Orientation | Right Angle |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight, IP66 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GLS |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 125V |
| Width | 30mm |
| RoHS | Compliant |
