SPDT momentary snap action switch featuring a top plunger actuator. Rated for 10A at 250VDC and 600VAC, with a 120VAC and 125VDC rating also specified. Offers a mechanical life of 15,000,000 cycles and operates within a temperature range of -40°C to 85°C. IP67 and IP66 rated for waterproof and dust-tight protection, with screw termination and chassis mounting.
Package300
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell GLCB01B technical specifications.
General
Actuator Type
PLUNGER
Package/Case
300
Contact Type
Snap Action
Current Rating
10A
Depth
26.35mm
Length
68.5mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mechanical Life
15000000Cycles
Mount
Chassis Mount, Screw
Operating Force
160N
Operating Position
180mm
Orientation
Straight
Overtravel
30mm
Packaging
Bulk
Pretravel
30mm
Ratings
IP67, Waterproof, Dust Tight, IP66
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
GLS
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
125V
Width
30.5mm
Compliance
RoHS
Compliant
Datasheet
Honeywell GLCB01B Datasheet
Download the complete datasheet for Honeywell GLCB01B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

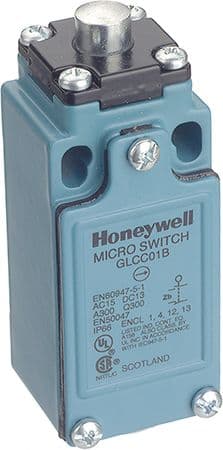

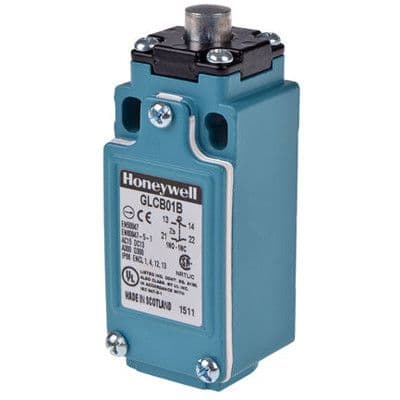

Product Images
