SPDT momentary snap acting switch with quick connect terminals, designed for panel mounting with a threaded body. Features a 10A current rating and a maximum voltage rating of 600V AC / 250V DC. Offers a mechanical life of 15 million cycles and operates within a temperature range of -40°C to 85°C. IP67 and IP66 rated for waterproof and dust-tight applications, with RoHS compliance.
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell GLCC01B technical specifications.
General
Approvals
UL, CSA, CE, CCC
Current Rating
10A
Depth
30mm
Height
77.4mm
Length
30.5mm
Max Operating Temperature
85°C
Mechanical Life
15000000Cycles
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Operating Force
160N
Operating Position
180mm
Orientation
Straight
Overtravel
30mm
Packaging
Bulk
Pretravel
30mm
Ratings
IP67, Waterproof, Dust Tight, IP66
RoHS Compliant
Yes
Series
GLS
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
120V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Honeywell GLCC01B Datasheet
Download the complete datasheet for Honeywell GLCC01B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

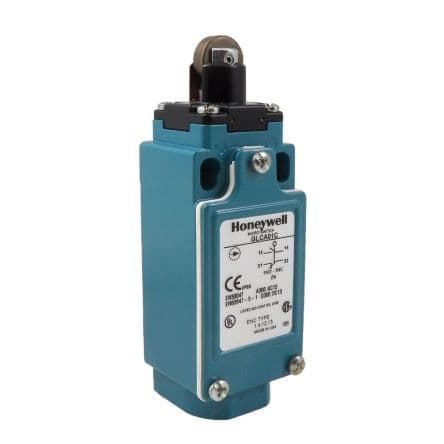

Product Images
