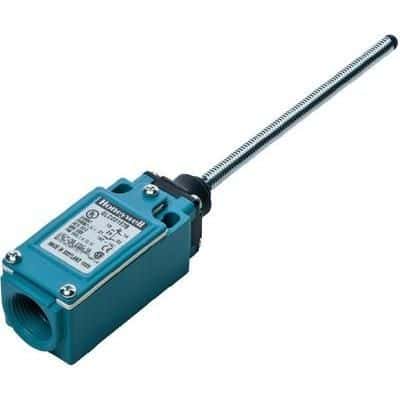

SPDT limit switch with screw termination, featuring a wobble actuator and screw mount. Rated for 6A at 240VAC and 240VDC, with a maximum AC voltage rating of 600V and DC voltage rating of 250V. Offers a mechanical life of 5,000,000 cycles and an operating force of 1.3N. IP66 rated for water and dust resistance, operating between -25°C and 85°C, and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell GLCC01E7B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell GLCC01E7B technical specifications.
| Approvals | UL, CSA, CE, CCC |
| Contact Type | 1 maker, 1 breaker |
| Current Rating | 10A |
| Depth | 30mm |
| Height | 187.5mm |
| Length | 30.5mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 5000000Cycles |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 250V |
| Mount | Chassis Mount, Screw |
| Operating Force | 13N |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | GLS |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 125V |
| Width | 30.5mm |
| RoHS | Compliant |
Download the complete datasheet for Honeywell GLCC01E7B to view detailed technical specifications.
