Technical Specifications

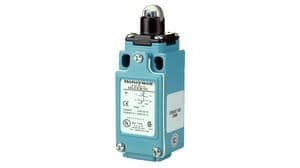

Honeywell GLCC06C technical specifications.
General
| Contact Type | Slow Action |
| Current Rating | 10A |
| Depth | 26.35mm |
| Length | 68.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Screw |
| Operating Force | 160N |
| Operating Position | 280mm |
| Overtravel | 30mm |
| Pretravel | 30mm |
| Ratings | IP66 |
| RoHS Compliant | No |
| Termination | Screw |
| Throw Configuration | DPST |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 250V |
| Width | 30.5mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell GLCC06C Datasheet
Download the complete datasheet for Honeywell GLCC06C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
