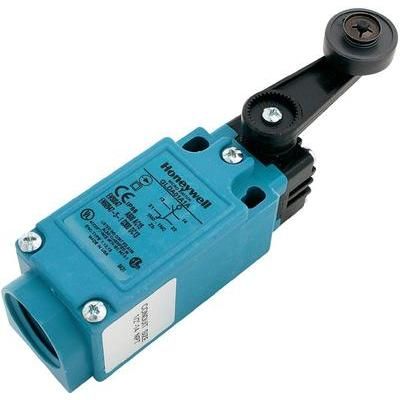

The GLDC01A1A is a rotary SPDT on-mom switch from Honeywell, rated for 10A at 125V DC. It features a chassis mount with screw termination and is compliant with IP67, making it waterproof and dust tight. The switch has a mechanical life of 10 million cycles and operates within a temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell GLDC01A1A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell GLDC01A1A technical specifications.
| Actuator Type | Rotary |
| Contact Type | 1 maker, 1 breaker |
| Current Rating | 10A |
| Height | 30mm |
| Max Operating Temperature | 85°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw |
| Ratings | IP67, Waterproof, Dust Tight, IP66 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GLS |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 125V |
| Width | 30.5mm |
| RoHS | Compliant |
Download the complete datasheet for Honeywell GLDC01A1A to view detailed technical specifications.
