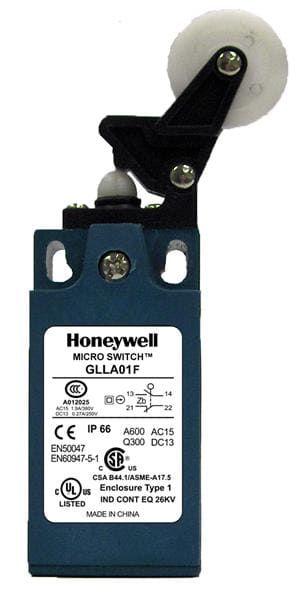

This SPDT limit switch from Honeywell features a DC rated voltage of 250V and an AC voltage rating of 300V. It is designed for use in harsh environments with IP66, water-resistant, and dust-tight ratings. The switch has a mechanical life of 5 million cycles and operates within a temperature range of -10°C to 80°C. It is available in a bulk packaging option with 10 pieces per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell GLLC03F datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | CE, cULus, CCC |
| Depth | 31mm |
| Height | 105.5mm |
| Length | 47.25mm |
| Max Operating Temperature | 80°C |
| Mechanical Life | 5000000Cycles |
| Min Operating Temperature | -10°C |
| Mount | Chassis Mount, Screw |
| Operating Force | 306gf |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| RoHS Compliant | Yes |
| Series | GLL |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 250V |
| RoHS | Compliant |
