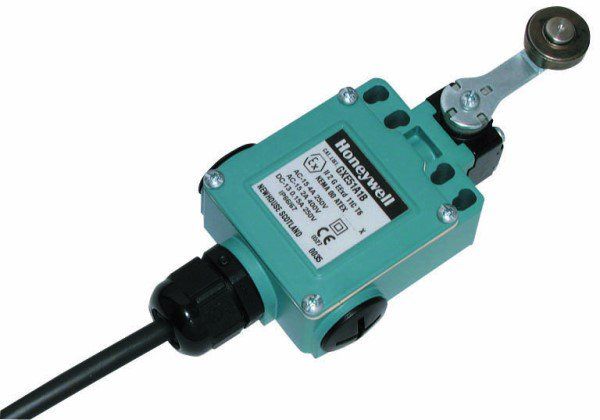

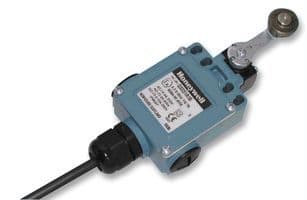

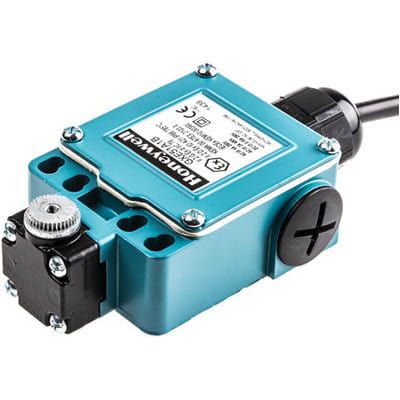

The GXE51A1B is a rotary snap action switch with a contact current rating of 5A and a voltage rating of 250V AC. It is designed for chassis mount and panel applications, with a mechanical life of 2,000,000 cycles. The switch operates within a temperature range of -25°C to 75°C and is rated for IP66, water-resistant, and dust-tight environments. It is compliant with RoHS regulations and is available in a bulk packaging configuration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell GXE51A1B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell GXE51A1B technical specifications.
| Actuator Type | Rotary |
| Contact Current Rating | 5A |
| Contact Type | Snap Action |
| Current Rating | 5A |
| Depth | 30mm |
| Length | 106.5mm |
| Max Operating Temperature | 75°C |
| Mechanical Life | 2000000Cycles |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount, Panel |
| Operating Force | 0.5N |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight, IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | GXE |
| Switch Function | On-Mom |
| Termination | Cable |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 25V |
| Width | 30mm |
| RoHS | Compliant |
