Mass air and gas flow sensor with a flow range of 0 to 200 SCCM. Features a 2.5% accuracy and a maximum operating pressure of 25 PSI. Operates within a temperature range of -20°C to 70°C and requires a 5V supply voltage. Offers a fast 1ms response time with digital output and low 40mW power consumption. Constructed with a durable polymer body and is RoHS compliant.
Power40mW
Quick Jump:
Technical Specifications
Honeywell HAFBLF0200C4AX5 technical specifications.
General
Accuracy
2.5%
Body Material
Polymer
Material
Polymer
Max Operating Temperature
70°C
Min Operating Temperature
-20°C
Max Pressure
25PSI
Operating Supply Voltage
5V
Output
DIGITAL
Output Type
Digital
Packaging
Bulk
Power Consumption
40mW
Response Time
1ms
RoHS Compliant
Yes
Series
Zephyr™ HAF
Compliance
RoHS
Compliant
Datasheet
Honeywell HAFBLF0200C4AX5 Datasheet
Download the complete datasheet for Honeywell HAFBLF0200C4AX5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

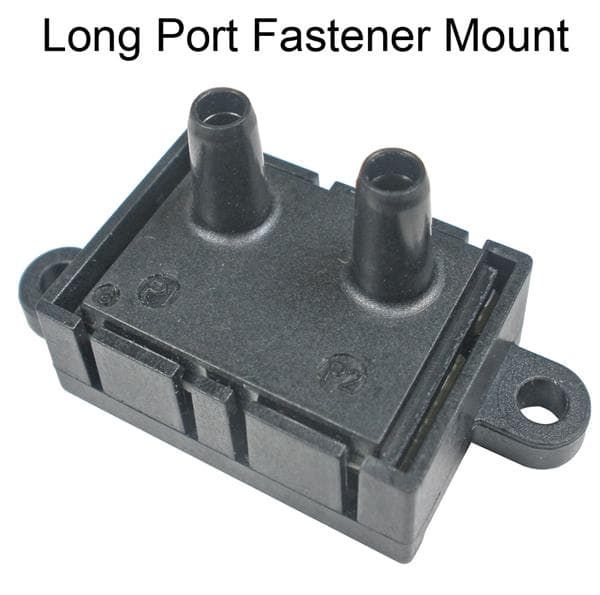

Product Images
