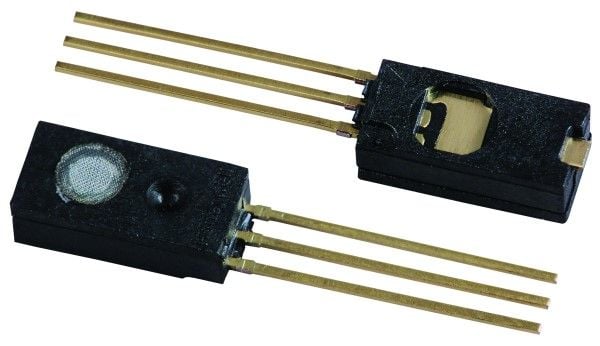

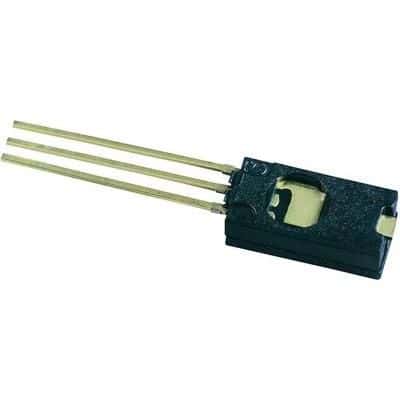

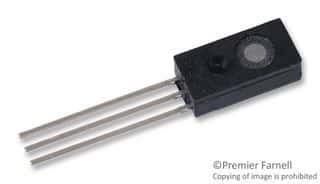

The HIH-4021-004 is a through-hole mounted analog voltage sensor with an accuracy of 3.5%. It operates within a temperature range of -40°C to 85°C and has a nominal supply current of 500uA. The sensor is packaged in a SIP package with a lead pitch of 1.27mm and dimensions of 0.338inch in height, 0.164inch in length, and 0.105inch in width. The HIH-4021-004 is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell HIH-4021-004 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 3.5% |
| Package/Case | SIP |
| Height | 0.338inch |
| Lead Pitch | 1.27mm |
| Length | 0.164inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.8V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Nominal Supply Current | 500uA |
| Output Type | Analog Voltage, Analog, Voltage |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Response Time | 5s |
| RoHS Compliant | Yes |
| Series | HIH-4021 |
| Supply Current | 200uA |
| Width | 0.105inch |
| RoHS | Compliant |
Download the complete datasheet for Honeywell HIH-4021-004 to view detailed technical specifications.
