Honeywell
HIH-4030-001
HONEYWELL S&C HIH-4030-001 Humidity Sensor, 3.5 %, 5.8 VDC, 0% to 100% Relative Humidity, SMD, 3 Pins, 5 s
PackageSMD/SMT
Capacitance0uF
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell HIH-4030-001 technical specifications.
General
Accuracy
3.5%
Capacitance
0uF
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.8V
Min Supply Voltage (DC)
4V
Max Supply Voltage
5.8V
Min Supply Voltage
4V
Mount
Surface Mount
Nominal Supply Current
500uA
Operating Supply Current
200uA
Operating Supply Voltage
5V
Output Type
Analog Voltage, Analog
Package Quantity
1
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Response Time
5s
RoHS Compliant
Yes
Sensing Method
Capacitive
Series
HIH-4030
Compliance
RoHS
Compliant
Datasheet
Honeywell HIH-4030-001 Datasheet
Download the complete datasheet for Honeywell HIH-4030-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

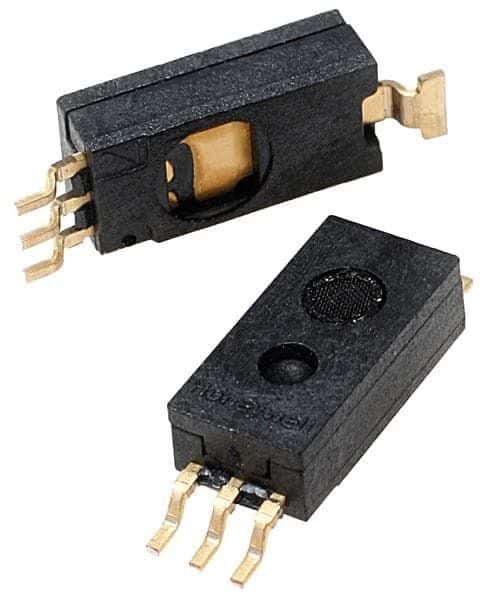

Product Images
