HONEYWELL

HIH-4602-A

Datasheet

Analog Humidity Sensor, 4V-5.8V, 3.5% Acc, TO-5

Honeywell

HIH-4602-A

Name: HIH-4602-A Honeywell
Brand: Honeywell
SKU: HIH-4602-A

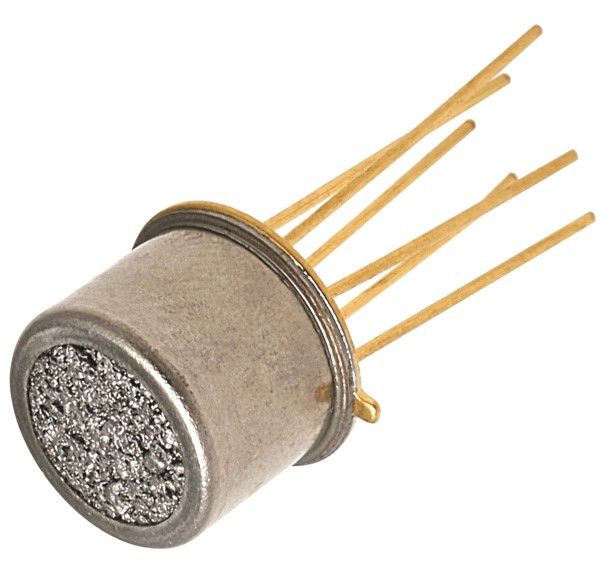

Analog Humidity Sensor, 4V-5.8V, 3.5% Acc, TO-5

Analog relative humidity sensor with a TO-5 package, featuring a 3.5% accuracy and 5% tolerance. Operates within a -40°C to 85°C temperature range and requires a 4V to 5.8V supply voltage, drawing a nominal 500µA. This through-hole mount component offers an analog voltage output and a 50s response time.

PackageTO-5

Current200uA

MountingThrough Hole

Quick Jump:

Technical Specifications

Honeywell HIH-4602-A technical specifications.

General

Accuracy	3.5%
Package/Case	TO-5
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.8V
Min Supply Voltage	4V
Mount	Through Hole
Nominal Supply Current	500uA
Output Type	Analog Voltage, Analog, Voltage
Package Quantity	10
Packaging	Can
Radiation Hardening	No
Reach SVHC Compliant	Unknown
Response Time	50s
RoHS Compliant	Yes
Sensor Type	Temperature
Series	HIH-4602
Supply Current	200uA
Tolerance	5%
