Rectangular diffuse photoelectric sensor with a single channel and phototransistor output. Features a 30V collector emitter breakdown voltage, 30mA maximum collector current, and 100mW power dissipation. Operates within a temperature range of -40°C to 85°C with a sensing distance of 1.02mm. Through-hole mounting with a polysulfone plastic package measuring 4.45mm in length and width, and 2.2mm in height. Includes a 15ns fall time and 15µs response time.
Voltage Rating30V
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Honeywell HLC1395-001 technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 15ns |
| Forward Current | 50mA |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 4.45mm |
| Material | Polysulfone |
| Max Collector Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output | TRANSISTOR |
| Output Type | Phototransistor |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Propagation Delay | 15us |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 15us |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage (DC) | 3V |
| RoHS Compliant | No |
| Sensing Distance | 1.02mm |
| Termination | LEAD |
| Touchscreen | Infrared (IR) |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Width | 4.45mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Honeywell HLC1395-001 Datasheet
Download the complete datasheet for Honeywell HLC1395-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

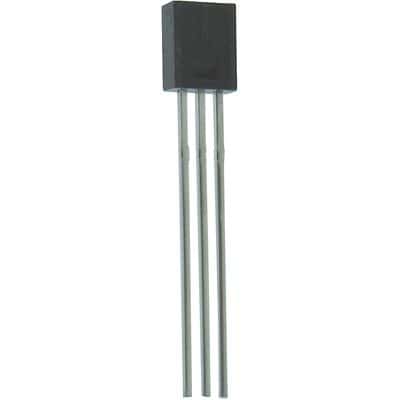

Product Images
