Diffuse photoelectric sensor, 1-channel, through-hole mount, featuring a phototransistor output. Operates with a DC rated voltage of 30V, a forward current of 50mA, and a maximum collector current of 30mA. Offers a fast response time of 15µs and a fall time of 15ns. Designed for a sensing distance of 5.08mm, with a maximum power dissipation of 70mW. Constructed from ABS material, this RoHS compliant component operates within a temperature range of -40°C to 85°C.
MountingThrough Hole
Power70mW
Quick Jump:
Technical Specifications
Honeywell HOA0149-001 technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 15ns |
| Forward Current | 50mA |
| Height | 4.83mm |
| Input Current | 50mA |
| Lead Free | Lead Free |
| Length | 8.89mm |
| Material | ABS |
| Max Collector Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 70mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output | TRANSISTOR |
| Output Current | 30mA |
| Output Type | Phototransistor |
| Packaging | Bulk |
| Power Dissipation | 70mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 15us |
| RoHS Compliant | Yes |
| Sensing Distance | 5.08mm |
| Termination | LEAD |
| Touchscreen | Infrared (IR) |
| DC Rated Voltage | 30V |
| Width | 17.78mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell HOA0149-001 Datasheet
Download the complete datasheet for Honeywell HOA0149-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

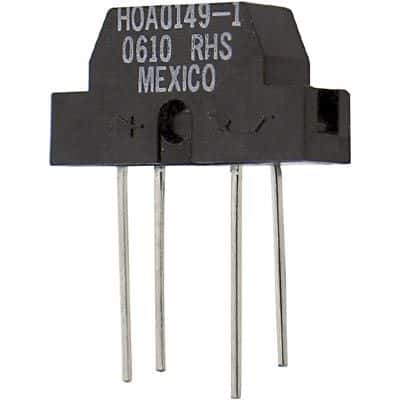

Product Images
