Technical Specifications
Honeywell HOA0862-T55 technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
600mV
Collector Emitter Voltage (VCEO)
600mV
Collector-emitter Voltage-Max
30V
Fall Time
15us
Forward Current
50mA
Max Collector Current
30mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, Screw
Number of Elements
1
Output
TRANSISTOR
Output Configuration
Phototransistor
Packaging
Bulk
Power Dissipation
100mW
Response Time
15us
Reverse Breakdown Voltage
3V
RoHS Compliant
No
Termination
Tab
Touchscreen
Infrared (IR)
Width
0.125inch
Compliance
RoHS
Not Compliant
Datasheet
Honeywell HOA0862-T55 Datasheet
Download the complete datasheet for Honeywell HOA0862-T55 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

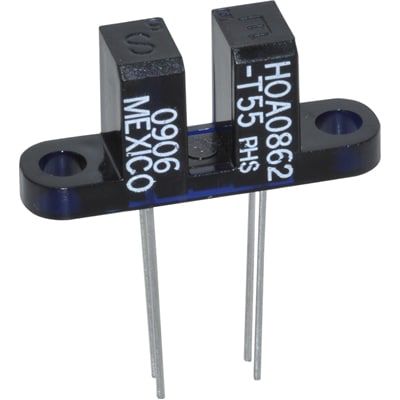

Product Images
