Honeywell
HOA0867-P55
Transistor Output Slotted Switch, 1-Channel, 3.18mm Slot Width, PLASTIC PACKAGE-4
MountingThrough Hole, Screw
Power100mW
Quick Jump:
Technical Specifications
Honeywell HOA0867-P55 technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
600mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Fall Time
15us
Forward Current
50mA
Max Collector Current
30mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, Screw
Number of Elements
1
Power Dissipation
100mW
Response Time
15us
Reverse Breakdown Voltage
3V
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Honeywell HOA0867-P55 Datasheet
Download the complete datasheet for Honeywell HOA0867-P55 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

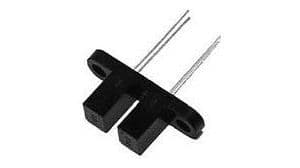

Product Images
