Honeywell
HOA0892-L55
Transistor Output Slotted Switch, 1-Channel, 3.18mm Slot Width, PLASTIC PACKAGE-4
Current50mA
MountingChassis Mount, Wire, Screw
Power100mW
Quick Jump:
Technical Specifications
Honeywell HOA0892-L55 technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Fall Time
15us
Forward Current
50mA
Input Current
50mA
Max Collector Current
30mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
1.6V
Mount
Chassis Mount, Wire, Screw
Number of Channels
1
Number of Elements
1
Output Voltage
30V
Packaging
Bulk
Power Dissipation
100mW
Reach SVHC Compliant
Unknown
Response Time
15us
Reverse Breakdown Voltage
3V
RoHS Compliant
No
Supply Current
50mA
Compliance
RoHS
Not Compliant
Datasheet
Honeywell HOA0892-L55 Datasheet
Download the complete datasheet for Honeywell HOA0892-L55 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

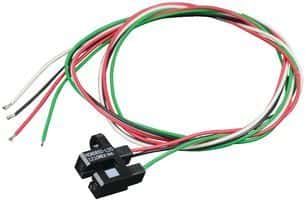

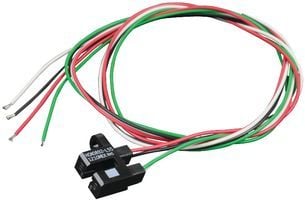

Product Images
