Logic output slotted switch featuring an NPN open collector output configuration. This optical sensor offers a 10V operating supply voltage and 50mA forward current. Key performance metrics include a 15ns response time and 400mV collector-emitter saturation voltage. Designed for through-hole mounting with solder termination, it operates across a -40°C to 70°C temperature range.
MountingThrough Hole, Screw
Power100mW
Quick Jump:
Technical Specifications
Honeywell HOA0961-N51 technical specifications.
General
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 400mV |
| Fall Time | 15ns |
| Forward Current | 50mA |
| Height | 11.05mm |
| Input Current | 50mA |
| Lead Free | Contains Lead |
| Length | 21.23mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Screw |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 12mA |
| Operating Supply Voltage | 10V |
| Output Configuration | NPN - Open Collector |
| Output Current | 10mA |
| Output Type | TTL |
| Output Voltage | 2.4V |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Propagation Delay | 5us |
| Radiation Hardening | No |
| Response Time | 15ns |
| Reverse Breakdown Voltage | 3V |
| RoHS Compliant | No |
| Termination | Solder |
| Touchscreen | Infrared (IR) |
| Width | 0.125inch |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Honeywell HOA0961-N51 Datasheet
Download the complete datasheet for Honeywell HOA0961-N51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

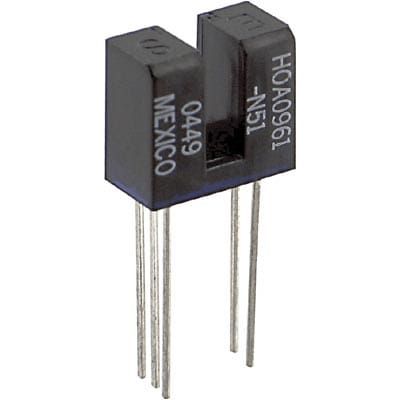

Product Images
