Diffuse photoelectric sensor with a sensing distance of 12.7mm, featuring a phototransistor output. This component operates with a 30V DC rated voltage and a maximum collector current of 30mA, offering a response time of 75µs and a fall time of 15µs. Encased in a metal can package, it supports chassis and screw mounting with lead wire termination. The sensor is designed for a wide operating temperature range from -55°C to 100°C.
MountingChassis Mount, Screw
Power75mW
Quick Jump:
Technical Specifications
Honeywell HOA1180-002 technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 15us |
| Forward Current | 50mA |
| Height | 6.35mm |
| Input Current | 160uA |
| Lead Free | Lead Free |
| Length | 15.88mm |
| Material | Polyester |
| Max Collector Current | 30mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 75mW |
| Mount | Chassis Mount, Screw |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output | TRANSISTOR |
| Output Current | 30mA |
| Output Type | Phototransistor |
| Packaging | Bulk |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 75us |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage (DC) | 3V |
| RoHS Compliant | No |
| Sensing Distance | 12.7mm |
| Termination | Lead Wire |
| Touchscreen | Infrared (IR) |
| DC Rated Voltage | 30V |
| Width | 6.35mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Honeywell HOA1180-002 Datasheet
Download the complete datasheet for Honeywell HOA1180-002 to view detailed technical specifications.
No datasheet is available for this part.

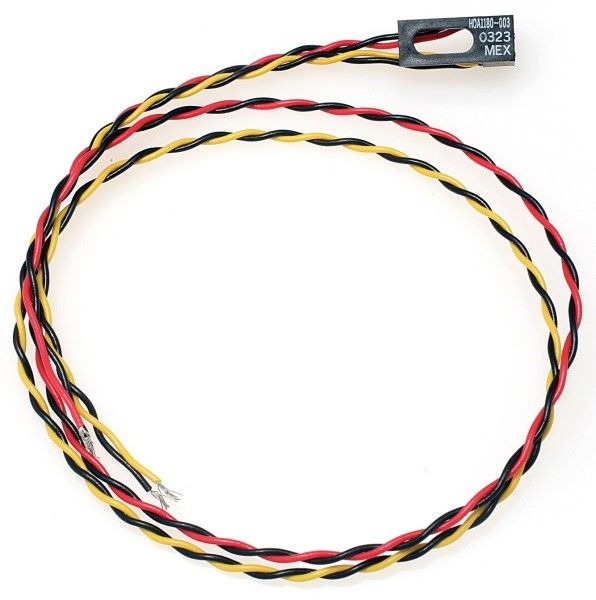

Product Images
