PackageRadial
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
Honeywell HOA1397-031 technical specifications.
General
Package/Case
Radial
Collector Emitter Breakdown Voltage
15V
Collector Emitter Voltage (VCEO)
15V
Collector-emitter Voltage-Max
15V
Fall Time
75us
Forward Current
20mA
Max Collector Current
30mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Type
Phototransistor
Packaging
Bulk
Power Dissipation
100mW
Response Time
75us
Reverse Breakdown Voltage
3V
Reverse Voltage (DC)
3V
RoHS Compliant
No
Sensing Distance
1.27mm
Compliance
RoHS
Not Compliant
Datasheet
Honeywell HOA1397-031 Datasheet
Download the complete datasheet for Honeywell HOA1397-031 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

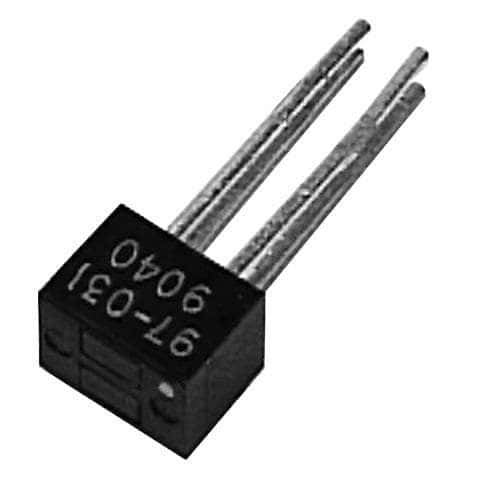

Product Images
