Slotted photointerrupter featuring a single-channel phototransistor output. This optical sensor offers a 3.18mm slot width and a 30V collector-emitter breakdown voltage. With a maximum collector current of 30mA and a forward current of 50mA, it operates within a temperature range of -40°C to 85°C. Mounting options include chassis, wire, and screw, with lead wire termination.
MountingChassis Mount, Wire, Screw
Power100mW
Quick Jump:
Technical Specifications
Honeywell HOA1887-012 technical specifications.
General
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 15000ns |
| Forward Current | 50mA |
| Height | 12.95mm |
| Input Current | 20mA |
| Length | 23.75mm |
| Max Collector Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Wire, Screw |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Voltage | 30V |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 15us |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage (DC) | 3V |
| RoHS Compliant | Yes |
| Termination | Lead Wire |
| Touchscreen | Infrared (IR) |
| DC Rated Voltage | 30V |
| Width | 15.62mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell HOA1887-012 Datasheet
Download the complete datasheet for Honeywell HOA1887-012 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

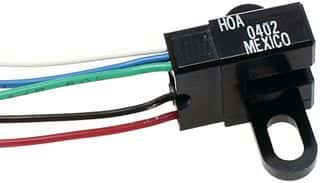

Product Images
