MountingChassis Mount, Wire, Screw
Power100mW
Quick Jump:
Technical Specifications
Honeywell HOA1887-013 technical specifications.
General
Collector Emitter Breakdown Voltage
15V
Collector Emitter Saturation Voltage
1.1V
Collector Emitter Voltage (VCEO)
15V
Collector-emitter Voltage-Max
15V
Fall Time
75us
Forward Current
50mA
Input Current
20mA
Max Collector Current
30mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Chassis Mount, Wire, Screw
Number of Channels
1
Number of Elements
1
Output Voltage
15V
Packaging
Bulk
Power Dissipation
100mW
Response Time
75us
Reverse Breakdown Voltage
3V
RoHS Compliant
Yes
DC Rated Voltage
15V
Compliance
RoHS
Compliant
Datasheet
Honeywell HOA1887-013 Datasheet
Download the complete datasheet for Honeywell HOA1887-013 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

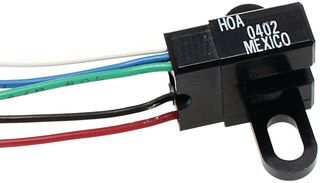

Product Images
