MountingThrough Hole, Screw
Power100mW
Quick Jump:
Technical Specifications
Honeywell HOA6972-T51 technical specifications.
General
Fall Time
70ns
Forward Current
50mA
High Level Output Current
800uA
Low Level Output Current
12.8mA
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole, Screw
Number of Channels
1
Number of Elements
1
Operating Supply Current
15mA
Operating Supply Voltage
7V
Power Dissipation
100mW
Propagation Delay
5us
Response Time
70ns
Reverse Breakdown Voltage
3V
Reverse Voltage (DC)
3V
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Honeywell HOA6972-T51 Datasheet
Download the complete datasheet for Honeywell HOA6972-T51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

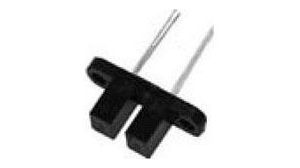

Product Images
