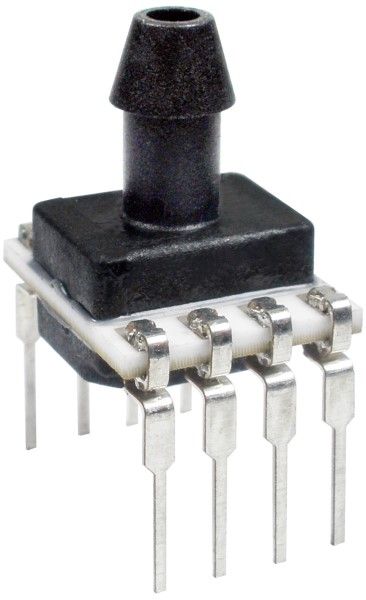

The TruStability HSC pressure sensor is a 3.3V device with a maximum operating temperature of 85°C and a minimum operating temperature of -20°C. It is designed to operate within a pressure range of 60PSI and has a maximum supply current of 2.1mA. The sensor is available in a RoHS compliant, ceramic DIP-8 package and is suitable for use in applications where a vented gauge pressure type is required. The device is part of the TruStability HSC series and features a barbed port style. It is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell HSCDAND060PGSA3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell HSCDAND060PGSA3 technical specifications.
| Accuracy | 0.25% |
| Package/Case | DIP |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Pressure | 120PSI |
| Max Supply Current | 2.1mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Operating Pressure | 60PSI |
| Operating Supply Voltage | 3.3V |
| Output Type | SPI |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| RoHS Compliant | Yes |
| Series | TruStability® HSC |
| Termination | PC Pin |
| RoHS | Compliant |
