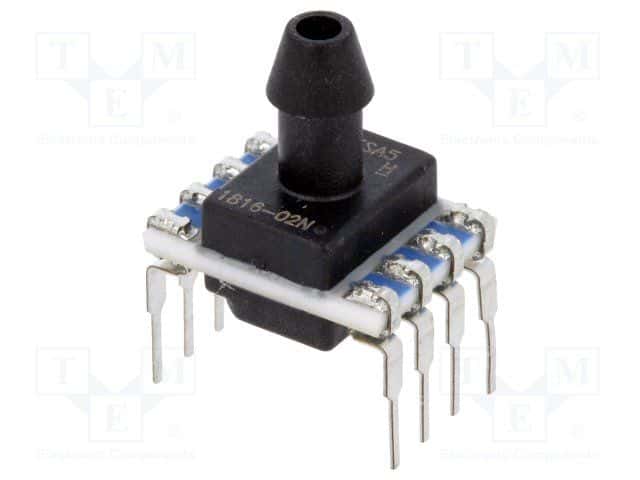

Digital pressure sensor with a 0.25% accuracy, measuring gauge pressure from 0 to 9.79 PSI. Features a 12-bit resolution, 0.20-0.80V output, and operates on a 5V supply. This through-hole mount component utilizes an I2C interface and is housed in a DIP package. RoHS compliant and suitable for operating temperatures from -20°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell HSCDANN004MGSA5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell HSCDANN004MGSA5 technical specifications.
| Accuracy | 0.25% |
| Package/Case | DIP |
| Height | 13.75mm |
| Interface | I2C |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Pressure | 9.79PSI |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4.95V |
| Mount | Through Hole |
| Nominal Supply Current | 2mA |
| Operating Pressure | 0.06PSI |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 5V |
| Output Type | SPI, Digital |
| Packaging | Bulk |
| Port Style | Barbed |
| Pressure Type | Gauge |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| RoHS Compliant | Yes |
| Series | TruStability® HSC |
| Supply Current | 2mA |
| Termination | PC Pin |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| Width | 6.99mm |
| RoHS | Compliant |
