Honeywell
HSCDRRN060MDSA3

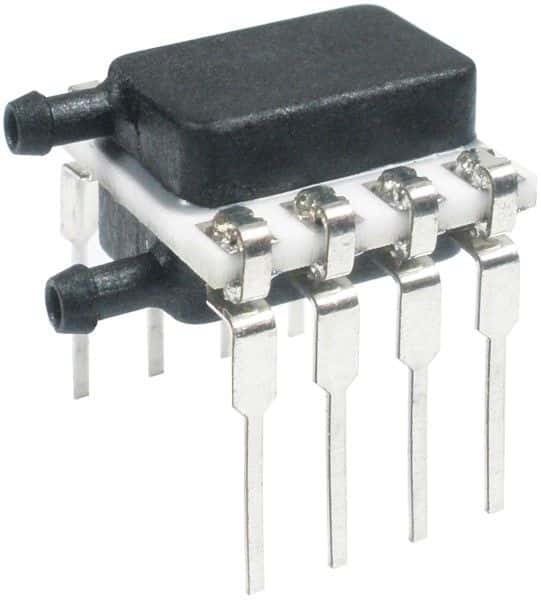

Peizoresistive Sensor, Differential, -.87Psi Min, 0.87Psi Max, 0.25%, Rectangular, Through Hole Mount, ROHS COMPLIANT, CERAMIC, DIP-8
PackageDIP
Current1.6mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell HSCDRRN060MDSA3 technical specifications.
General
Accuracy
0.25%
Package/Case
DIP
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
12.33PSI
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Through Hole
Operating Pressure
0.87PSI
Operating Supply Voltage
3.3V
Output Type
Digital, SPI
Port Style
Barbed
Pressure Type
Differential
Radiation Hardening
No
RoHS Compliant
Yes
Series
TruStability® HSC
Supply Current
1.6mA
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCDRRN060MDSA3 Datasheet
Download the complete datasheet for Honeywell HSCDRRN060MDSA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
