Honeywell
HSCDRRV001PD2A3
Peizoresistive Sensor, Differential, -1Psi Min, 1Psi Max, 0.25%, 0.20-0.80V, Rectangular, Through Hole Mount, ROHS COMPLIANT, CERAMIC, DIP-8
PackageDIP
Quick Jump:
Technical Specifications
Honeywell HSCDRRV001PD2A3 technical specifications.
General
Accuracy
0.25%
Package/Case
DIP
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
10PSI
Max Supply Voltage
6V
Min Supply Voltage
3V
Nominal Supply Current
1.6mA
Operating Pressure
1PSI
Operating Supply Voltage
3.3V
Output Type
I2C, Digital
Port Style
Barbed
Pressure Type
Differential
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® HSC
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCDRRV001PD2A3 Datasheet
Download the complete datasheet for Honeywell HSCDRRV001PD2A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

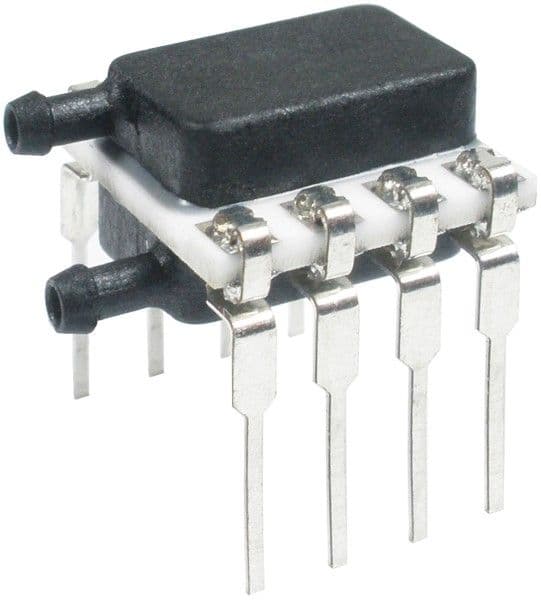

Product Images
