Honeywell
HSCMAND150PA4A3
Peizoresistive Sensor, Absolute, 0Psi Min, 150Psi Max, 0.25%, 0.20-0.80V, Rectangular, Surface Mount, ROHS COMPLIANT, CERAMIC, SMT-8
PackageSMD/SMT
Current1.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell HSCMAND150PA4A3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Pressure
250PSI
Max Supply Current
2.1mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
1.6mA
Operating Pressure
150PSI
Operating Supply Voltage
3.3V
Output Type
I2C, Digital
Package Quantity
1
Port Style
Barbed
Pressure Type
Absolute
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability® HSC
Supply Current
1.6mA
Termination
Gull Wing
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCMAND150PA4A3 Datasheet
Download the complete datasheet for Honeywell HSCMAND150PA4A3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

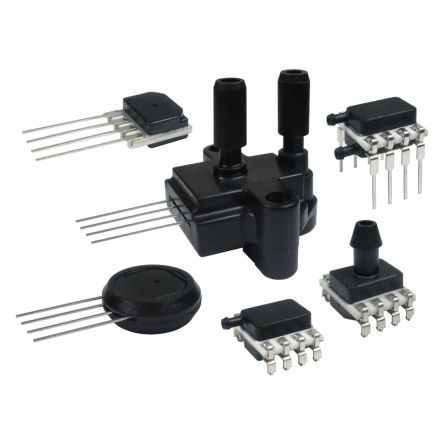

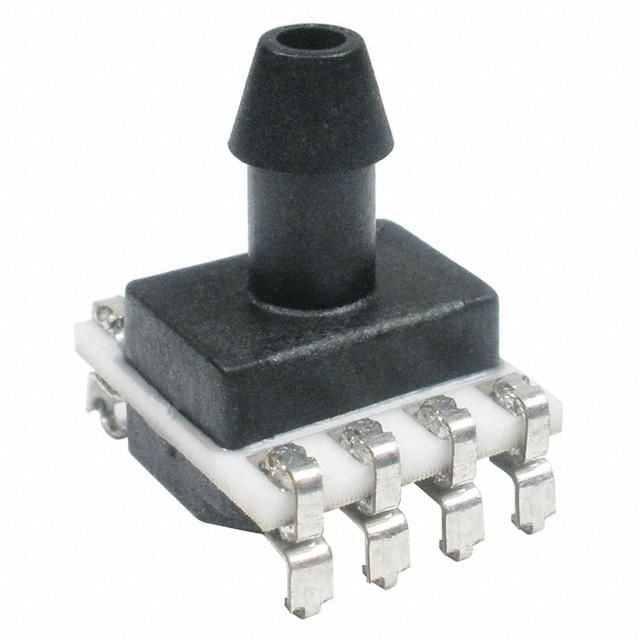

Product Images
