The TruStability HSC pressure sensor features an accuracy of 0.25% and operates within a temperature range of -20°C to 85°C. It is a RoHS compliant, ceramic, surface-mount device with a package type of SMT-8. The sensor is designed for use in environments with a maximum pressure of 250PSI and an operating pressure of 100PSI. It communicates via I2C and provides digital output. The sensor is suitable for use in general applications.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Honeywell HSCMANT100PG2A5 technical specifications.
General
| Accuracy | 0.25% |
| Package/Case | SMD/SMT |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Pressure | 250PSI |
| Operating Pressure | 100PSI |
| Operating Supply Voltage | 5V |
| Output Type | Digital, I2C |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| RoHS Compliant | Yes |
| Series | TruStability® HSC |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell HSCMANT100PG2A5 Datasheet
Download the complete datasheet for Honeywell HSCMANT100PG2A5 to view detailed technical specifications.
No datasheet is available for this part.

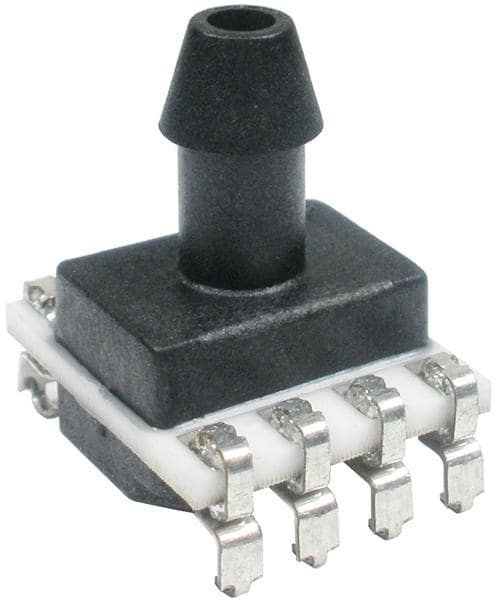

Product Images
