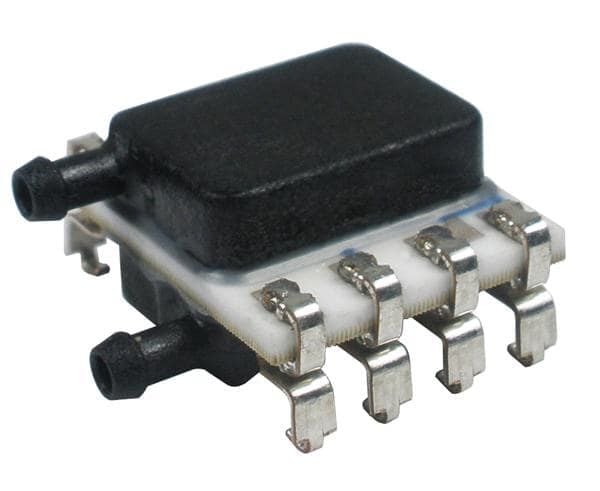

The TruStability HSC pressure sensor is a digital, SPI output device with a nominal supply current of 1.6mA and a maximum supply voltage of 3.3V. It operates within a temperature range of -20°C to 85°C and is RoHS compliant. The sensor is a vented gauge type with a response time of 1ms and a maximum operating pressure of 12.33PSI. It is available in an SMD/SMT package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell HSCMRRN060MGSA3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell HSCMRRN060MGSA3 technical specifications.
| Accuracy | 0.25% |
| Package/Case | SMD/SMT |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Pressure | 12.33PSI |
| Max Supply Current | 2.1mA |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 3V |
| Nominal Supply Current | 1.6mA |
| Operating Pressure | 0.87PSI |
| Output Type | Digital, SPI |
| Port Style | Barbed |
| Pressure Type | Vented Gauge |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Series | TruStability® HSC |
| Supply Current | 1.6mA |
| DC Rated Voltage | 3.3V |
| RoHS | Compliant |
Download the complete datasheet for Honeywell HSCMRRN060MGSA3 to view detailed technical specifications.
