Honeywell
HSCMRRN100MDSA3
Peizoresistive Sensor, Differential, -1.45Psi Min, 1.45Psi Max, 0.25%, Rectangular, Surface Mount, ROHS COMPLIANT, CERAMIC, SMT-8
PackageSMD/SMT
Current1.6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell HSCMRRN100MDSA3 technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Max Operating Temperature
85°C
Min Operating Temperature
-20°C
Max Supply Current
2.1mA
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Nominal Supply Current
1.6mA
Operating Supply Voltage
3.3V
Output Type
Digital
Package Quantity
20
Port Style
Barbed
Pressure Type
Differential
Response Time
1ms
RoHS Compliant
Yes
Series
TruStability™ HSC
Supply Current
1.6mA
Termination
SMD/SMT
DC Rated Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Honeywell HSCMRRN100MDSA3 Datasheet
Download the complete datasheet for Honeywell HSCMRRN100MDSA3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

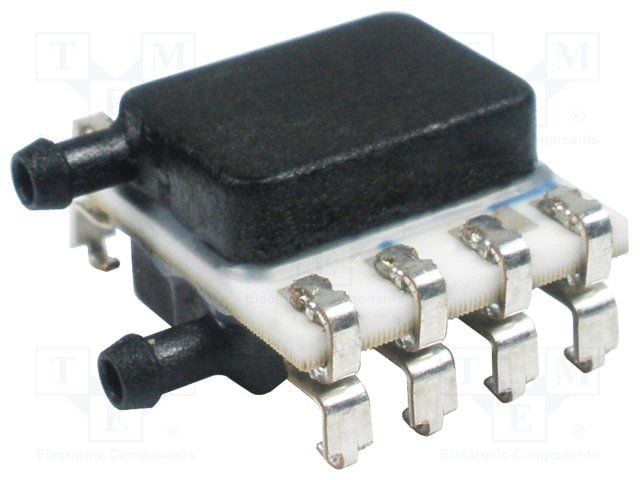

Product Images
