The JS-2 switch from Honeywell features a silver contact material and a maximum operating temperature of 85°C. It has a current rating of 5A and a voltage rating of 250V. The switch is available in a package quantity of 50 and can be mounted using screws or solder. The operating force is 2.78N and the switch has a straight orientation.
Voltage Rating250V
Current Rating5A
MountingScrew, Solder
Quick Jump:
Technical Specifications
Honeywell JS-2 technical specifications.
General
| Contact Material | Silver |
| Current Rating | 5A |
| Lead Free | Lead Free |
| Length | 24.3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -54°C |
| Mount | Screw, Solder |
| Operating Force | 2.78N |
| Orientation | Straight |
| Package Quantity | 50 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Series | SM |
| Termination | Solder |
| Throw Configuration | SPDT |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell JS-2 Datasheet
Download the complete datasheet for Honeywell JS-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

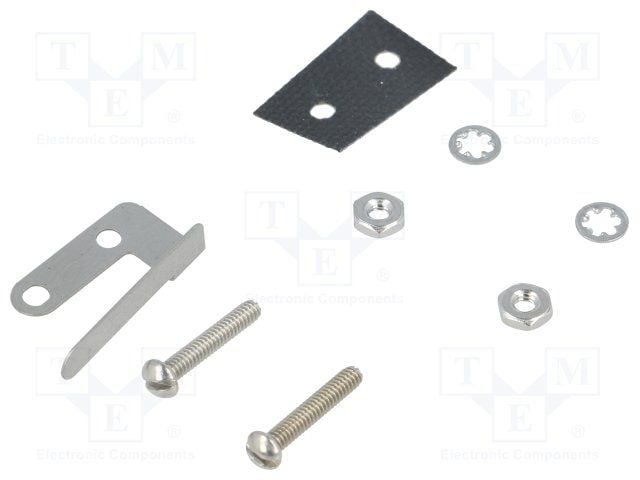

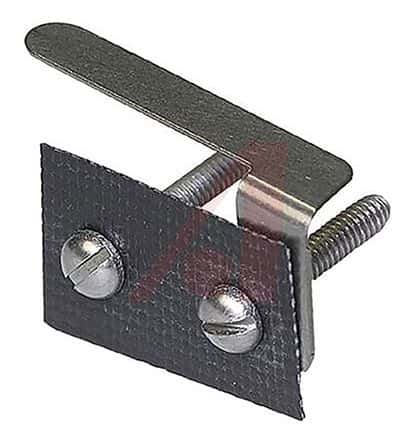

Product Images
