The JS-31 is a roller lever switch with a silver contact material and a maximum operating temperature of 85°C. It has a minimum operating temperature of -54°C and an operating force of 11.1N. The switch is available in a package quantity of 50 and is suitable for screw or solder mount applications.
MountingScrew, Solder
Quick Jump:
Technical Specifications
Honeywell JS-31 technical specifications.
General
| Actuator Type | ROLLER LEVER |
| Contact Material | Silver |
| Length | 21.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -54°C |
| Mount | Screw, Solder |
| Operating Force | 11.1N |
| Orientation | Straight |
| Package Quantity | 50 |
| RoHS Compliant | No |
| Series | SM |
| Termination | Solder |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell JS-31 Datasheet
Download the complete datasheet for Honeywell JS-31 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

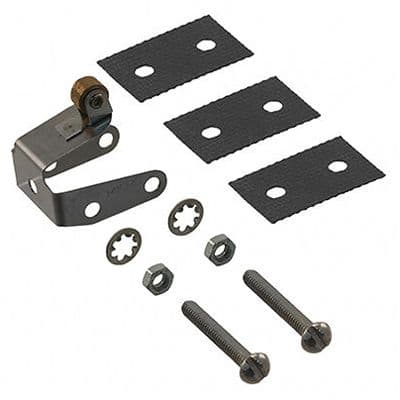

Product Images
