Technical Specifications
Honeywell LS2YDB4K technical specifications.
General
| Approvals | UL, CSA, CE, CCC |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 1.785inch |
| Length | 142.39mm |
| Max Operating Temperature | 121°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount, Screw |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LS2 |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 120V |
| DC Rated Voltage | 120V |
| Width | 1.875inch |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell LS2YDB4K Datasheet
Download the complete datasheet for Honeywell LS2YDB4K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

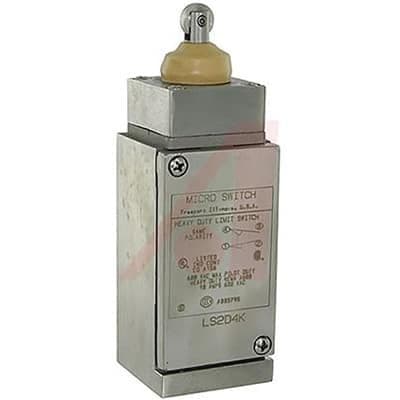

Product Images
