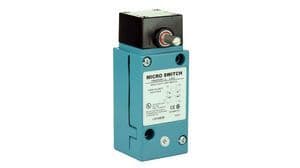

Honeywell
LSA2B
Switch Limit N.O./N.C. DPDT Side Rotary Conduit 10A 24VDC Rotary Screw Mount Automotive
Current Rating10A
MountingChassis Mount, Plug-In, Screw, Front
Quick Jump:
Technical Specifications
Honeywell LSA2B technical specifications.
General
Actuator Type
Rotary
Approvals
UL, CSA, CE, EN, NEMA
Contact Current Rating
10A
Contact Type
Snap Action
Current Rating
10A
Depth
119mm
Length
47.8mm
Max Operating Temperature
121°C
Min Operating Temperature
-12°C
Max Voltage Rating (DC)
24V
Mount
Chassis Mount, Plug-In, Screw, Front
Orientation
Right Angle
Packaging
Bulk
Ratings
IP65
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
HDLS
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
DPDT
Voltage Rating (AC)
600V
DC Rated Voltage
115V
Width
45.3mm
Compliance
RoHS
Compliant
Datasheet
Honeywell LSA2B Datasheet
Download the complete datasheet for Honeywell LSA2B to view detailed technical specifications.
