Honeywell
LSF4L
Snap Acting/Limit Switch, DPDT, Momentary, 240VDC, Screw Terminal, Side Roller Plunger Actuator, Panel Mount
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell LSF4L technical specifications.
General
Approvals
UL, CSA, CE, CCC
Current Rating
10A
Depth
65.66mm
Height
113.92mm
Length
47.63mm
Max Operating Temperature
93°C
Min Operating Temperature
-12°C
Mount
Chassis Mount, Screw
Operating Force
2669N
Orientation
Right Angle
Overtravel
0.19inch
Package Quantity
1
Packaging
Bulk
Pretravel
254mm
RoHS Compliant
Yes
Series
LSF
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
DPDT
Voltage Rating (AC)
120V
DC Rated Voltage
115V
Compliance
RoHS
Compliant
Datasheet
Honeywell LSF4L Datasheet
Download the complete datasheet for Honeywell LSF4L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

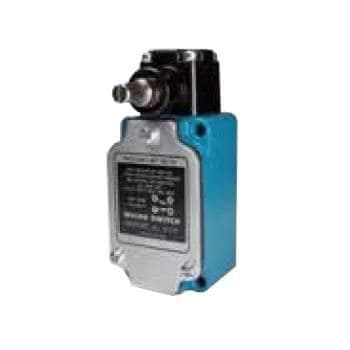

Product Images
