The LSP1A is a rotary limit switch with a contact current rating of 10A and a voltage rating of 600V AC and 115V DC. It has a maximum operating temperature of 121°C and a minimum operating temperature of -12°C. The switch is rated for IP65 and is compliant with RoHS regulations. It is available in a screw mount package and is suitable for use in a variety of applications.
Current Rating10A
MountingChassis Mount, Screw, Front
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Honeywell LSP1A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Honeywell LSP1A technical specifications.
General
| Actuator Type | Rotary |
| Approvals | UL, CSA, CE, EN, NEMA |
| Contact Current Rating | 10A |
| Contact Type | Snap Action |
| Current Rating | 10A |
| Depth | 106.7mm |
| Length | 41.1mm |
| Max Operating Temperature | 121°C |
| Min Operating Temperature | -12°C |
| Mount | Chassis Mount, Screw, Front |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LSP |
| Switch Function | On-Mom |
| Termination | Conduit |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 600V |
| DC Rated Voltage | 115V |
| Width | 44.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell LSP1A Datasheet
Download the complete datasheet for Honeywell LSP1A to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

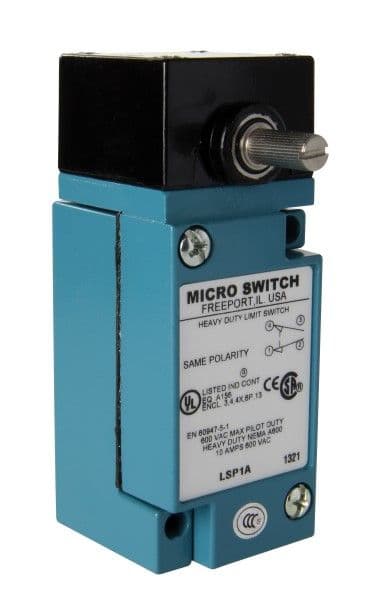

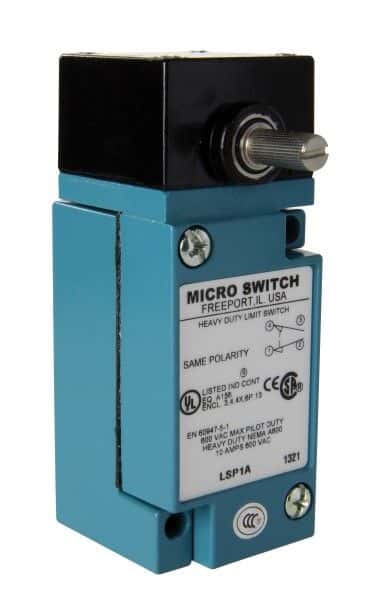

Product Images
