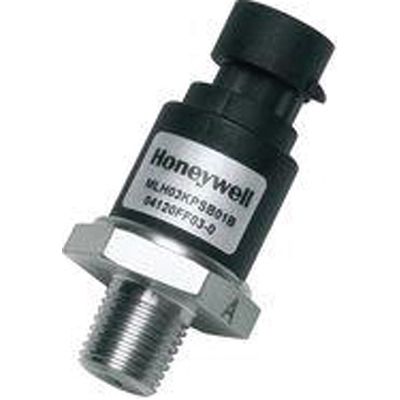

Cylindrical strain gauge pressure sensor with sealed gauge pressure type, offering 0.25% accuracy and a 4-20mA analog current output. Features a 2000 PSI maximum pressure rating, operating from 9.5V to 30V supply voltage, and a 2ms response time. Designed for stud mounting with a threaded port, this sensor operates within a -40°C to 125°C temperature range and boasts an IP65 rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell MLH01KPSB01B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Honeywell MLH01KPSB01B technical specifications.
| Accuracy | 0.25% |
| Height | 55mm |
| Lead Free | Lead Free |
| Length | 27mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 2000PSI |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 9.5V |
| Mount | Stud |
| Operating Pressure | 1000PSI |
| Output Current | 4mA |
| Output Type | Analog Current |
| Packaging | Tray |
| Port Style | Threaded |
| Pressure Type | Sealed Gauge |
| Primary Type | PRESSURE SENSOR |
| Ratings | IP65 |
| Reach SVHC Compliant | No |
| Response Time | 2ms |
| RoHS Compliant | Yes |
| Series | MLH |
| Voltage Rating | 30V |
| DC Rated Voltage | 30V |
| Weight | 57g |
| Width | 27mm |
| RoHS | Compliant |
