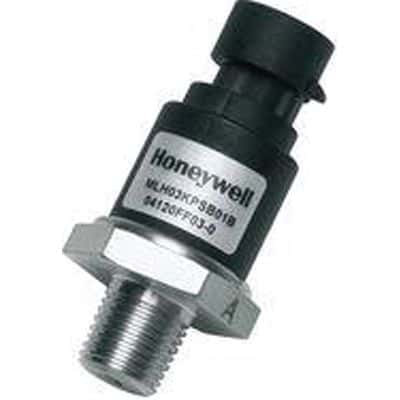

Cylindrical strain gauge pressure sensor with sealed gauge pressure type, offering 0.25% accuracy and a 0.50-4.50V analog voltage output. Features a 2000 PSI maximum pressure rating and operates within a -40°C to 125°C temperature range. This sensor is designed for stud mounting with a threaded port style and a 2ms response time. It is lead-free and RoHS compliant, operating at 5V supply voltage and 4mA current.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell MLH01KPSB06A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.25% |
| Height | 55mm |
| Lead Free | Lead Free |
| Length | 27mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 2000PSI |
| Max Supply Current | 8mA |
| Max Supply Voltage | 6V |
| Mount | Stud |
| Operating Pressure | 1000PSI |
| Operating Supply Current | 4mA |
| Operating Supply Voltage | 5V |
| Output Type | Analog Voltage |
| Output Voltage | 4V |
| Packaging | Bulk |
| Port Style | Threaded |
| Pressure Type | Sealed Gauge |
| Primary Type | PRESSURE SENSOR |
| Response Time | 2ms |
| RoHS Compliant | Yes |
| Series | MLH |
| DC Rated Voltage | 5V |
| Weight | 57g |
| Width | 27mm |
| RoHS | Compliant |
