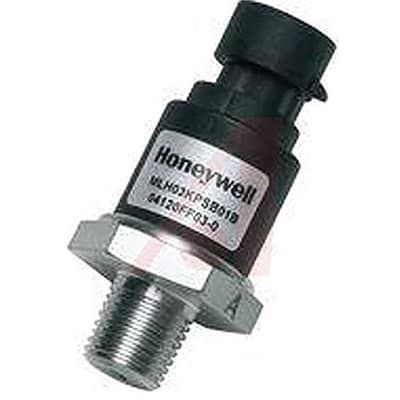

Cylindrical sealed gauge pressure sensor with 0.25% accuracy, operating from -40°C to 125°C. Features a 5000PSI operating pressure, 7500PSI maximum pressure, and a 0.50-4.50V analog voltage output. Mounts via stud with a threaded port, offering IP65 rating and 2ms response time. Powered by a 5V supply voltage with a maximum of 8mA current draw.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell MLH05KPSL06A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.25% |
| Height | 55mm |
| Lead Free | Lead Free |
| Length | 31.16mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 7500PSI |
| Max Supply Current | 8mA |
| Max Supply Voltage | 6V |
| Mount | Stud |
| Operating Pressure | 5000PSI |
| Operating Supply Voltage | 5V |
| Output Type | Analog Voltage, Voltage, Analog |
| Output Voltage | 4V |
| Package Quantity | 25 |
| Packaging | Tape and Reel |
| Port Style | Threaded |
| Pressure Type | Sealed Gauge |
| Primary Type | PRESSURE SENSOR |
| Ratings | IP65 |
| Response Time | 2ms |
| RoHS Compliant | Yes |
| Series | MLH |
| Supply Current | 4mA |
| Termination | Cable |
| Weight | 57g |
| Width | 27mm |
| RoHS | Compliant |
