Industrial pressure sensor with a 0-150 PSI operating range and sealed gauge pressure type. Features 0.25% accuracy, 2ms response time, and an analog current output. Operates from -40°C to 125°C with a 9.5V to 30V supply voltage. IP65 rated with a threaded port and stud mount, suitable for demanding industrial applications.
Voltage Rating30V
MountingStud
Quick Jump:
Technical Specifications
Honeywell MLH150PSB01B technical specifications.
General
Accuracy
0.25%
Height
55mm
Length
31.16mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
450PSI
Max Supply Voltage
30V
Min Supply Voltage
9.5V
Mount
Stud
Operating Pressure
150PSI
Output Current
4mA
Output Type
Analog Current
Packaging
Bulk
Port Style
Threaded
Pressure Type
Sealed Gauge
Primary Type
PRESSURE SENSOR
Ratings
IP65
Reach SVHC Compliant
Unknown
Response Time
2ms
RoHS Compliant
Yes
Series
MLH
Voltage Rating
30V
DC Rated Voltage
30V
Weight
57g
Width
27mm
Compliance
RoHS
Compliant
Datasheet
Honeywell MLH150PSB01B Datasheet
Download the complete datasheet for Honeywell MLH150PSB01B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

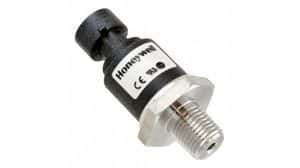

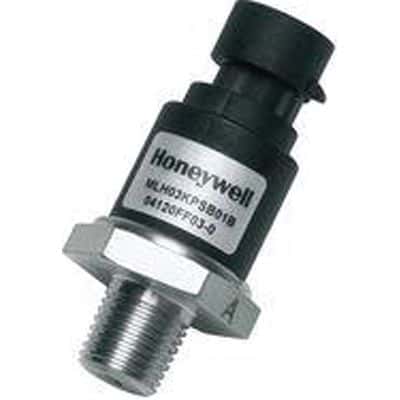

Product Images
