Cylindrical, sealed gauge pressure sensor with 0.25% accuracy. Features a 1-6V analog voltage output, operating pressure of 500PSI, and a maximum pressure of 1500PSI. Operates within a temperature range of -40°C to 125°C, powered by 8-30V supply voltage. Metal package with threaded port and stud mount, offering a 2ms response time and RoHS compliance.
PackageMetal
Current5mA
MountingStud
Quick Jump:
Technical Specifications
Honeywell MLH500PSB09C technical specifications.
General
Accuracy
0.25%
Package/Case
Metal
Height
55mm
Lead Free
Lead Free
Length
27mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
1500PSI
Max Supply Current
17mA
Max Supply Voltage
30V
Min Supply Voltage
8V
Mount
Stud
Operating Pressure
500PSI
Output Type
Analog Voltage
Output Voltage
5V
Package Quantity
25
Packaging
Bulk
Port Style
Threaded
Pressure Type
Sealed Gauge
Primary Type
PRESSURE SENSOR
Response Time
2ms
RoHS Compliant
Yes
Series
MLH
Supply Current
5mA
Weight
57g
Width
27mm
Compliance
RoHS
Compliant
Datasheet
Honeywell MLH500PSB09C Datasheet
Download the complete datasheet for Honeywell MLH500PSB09C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

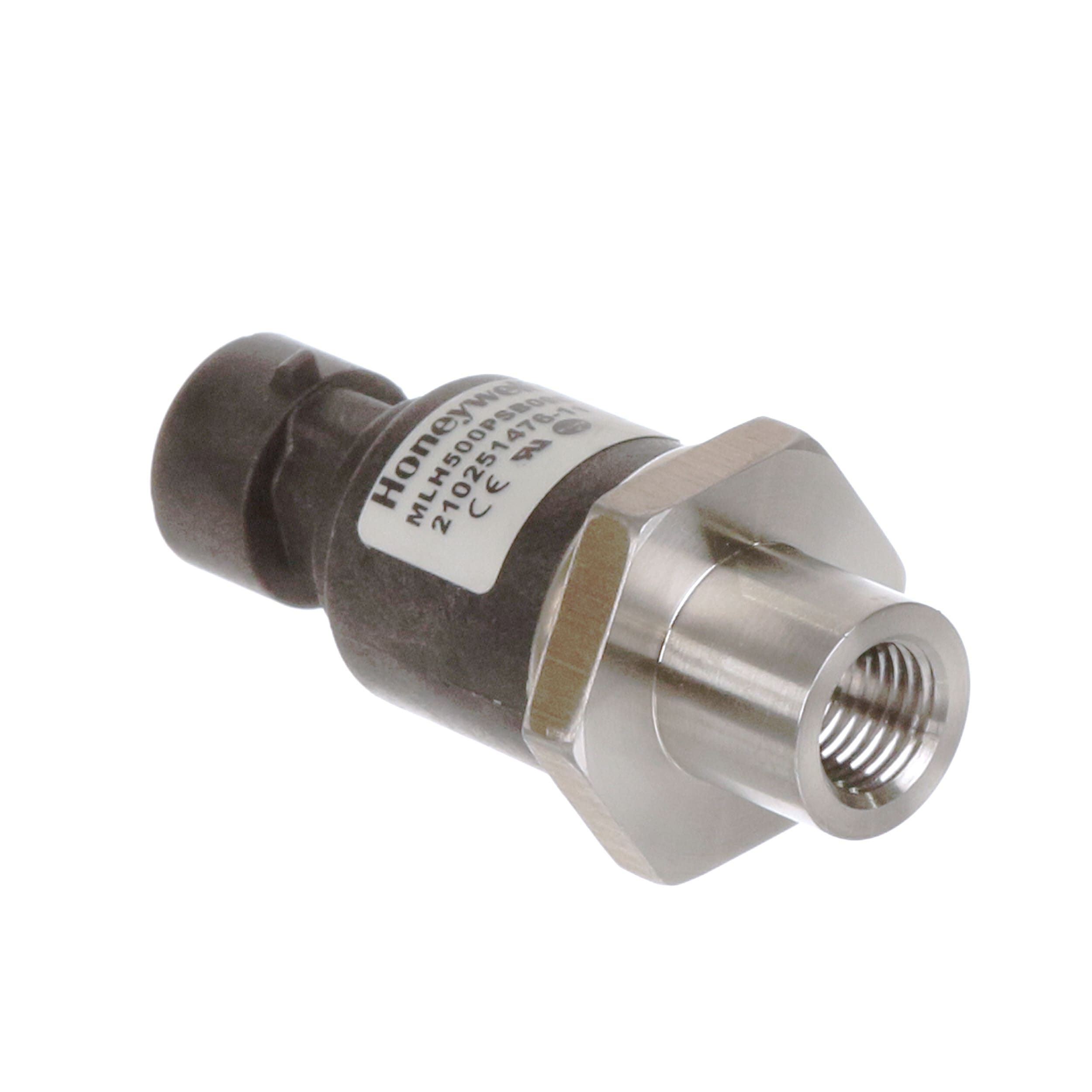

Product Images
