Technical Specifications
Honeywell NBPDPNN030PAUNV technical specifications.
General
Accuracy
0.25%
Package/Case
DIP
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
60PSI
Max Supply Voltage
12V
Min Supply Voltage
1.8V
Mount
Through Hole
Operating Pressure
30PSI
Operating Supply Voltage
5V
Output Type
Wheatstone Bridge
Package Quantity
200
Port Style
No Port
Pressure Type
Absolute
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
NBP
Supply Current
1.5mA
Termination
PC Pin
DC Rated Voltage
5V
Compliance
RoHS
Not Compliant
Datasheet
Honeywell NBPDPNN030PAUNV Datasheet
Download the complete datasheet for Honeywell NBPDPNN030PAUNV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

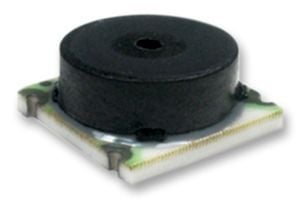

Product Images
