Piezoresistive pressure sensor featuring a 0 to 5 PSI operating pressure range and 0.25% accuracy. This vented gauge sensor utilizes a Wheatstone bridge output and is designed for surface mount (SMT) applications. It operates with a supply voltage between 1.8V and 12V, typically drawing 1.5mA, and functions across an extended temperature range of -40°C to 125°C.
PackageSMD/SMT
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell NBPLLNN005PGUNV technical specifications.
General
Accuracy
0.25%
Package/Case
SMD/SMT
Input Resistance
3kR
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
30PSI
Max Supply Voltage
12V
Min Supply Voltage
1.8V
Mount
Surface Mount
Nominal Supply Current
1.5mA
Operating Pressure
5PSI
Operating Supply Current
1.5mA
Operating Supply Voltage
5V
Output Type
Wheatstone Bridge, Analog
Packaging
Bulk
Port Style
Barbless
Pressure Type
Vented Gauge
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Series
NBP
Supply Current
1.5mA
Termination
SMD/SMT
DC Rated Voltage
5V
Compliance
RoHS
Not CompliantNo
Datasheet
Honeywell NBPLLNN005PGUNV Datasheet
Download the complete datasheet for Honeywell NBPLLNN005PGUNV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

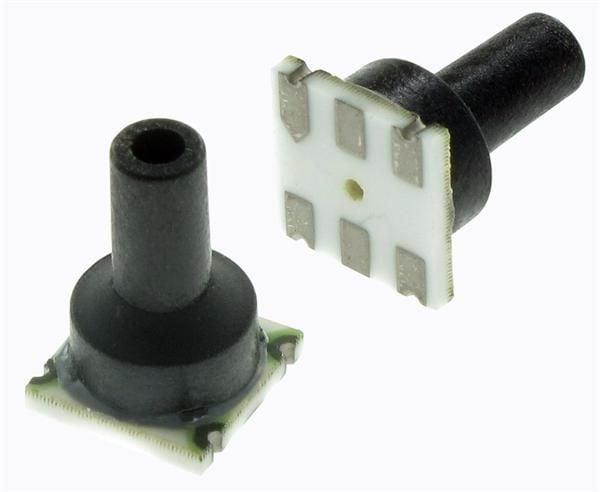

Product Images
