Gauge pressure sensor featuring a Wheatstone bridge analog output. Operates within a 1.8V to 12V supply voltage range, with a nominal supply current of 1.5mA. Offers 0.25% accuracy and a maximum operating pressure of 240PSI, with a nominal operating pressure of 150PSI. Designed for surface mounting with SMD/SMT termination, measuring 11mm in length, 7mm in width, and 10.94mm in height. Suitable for operation between -40°C and 125°C.
PackageSMD/SMT
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Honeywell NBPMANN150PGUNV technical specifications.
General
| Accuracy | 0.25% |
| Package/Case | SMD/SMT |
| Height | 10.94mm |
| Input Resistance | 3kR |
| Length | 11mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 240PSI |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.5mA |
| Operating Pressure | 150PSI |
| Operating Supply Voltage | 5V |
| Output Type | Wheatstone Bridge, Analog |
| Package Quantity | 200 |
| Port Style | Barbed |
| Pressure Type | Gauge |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | NBP |
| Supply Current | 1.5mA |
| Termination | SMD/SMT |
| DC Rated Voltage | 12V |
| Width | 7mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Honeywell NBPMANN150PGUNV Datasheet
Download the complete datasheet for Honeywell NBPMANN150PGUNV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

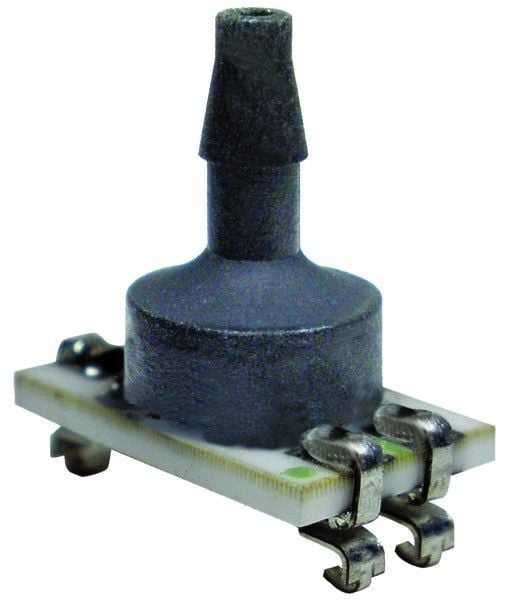

Product Images
