Absolute pressure sensor with a 15 PSI operating range, offering 0.25% accuracy. Features an analog output and I2C interface, operating within a -40°C to 85°C temperature range. Designed for through-hole mounting with PC pin termination and a barbed port style, housed in a DIP package. Requires a 1.8V to 12V DC supply voltage, with a nominal supply current of 1.5mA.
PackageDIP
Current1.5mA
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell NSCDANN015PAUNV technical specifications.
General
Accuracy
0.25%
Package/Case
DIP
Interface
I2C
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
1.5mA
Max Supply Voltage (DC)
12V
Min Supply Voltage (DC)
1.8V
Mount
Through Hole
Nominal Supply Current
1.5mA
Operating Pressure
15PSI
Operating Supply Voltage
5V
Output Type
Analog
Package Quantity
20
Port Style
Barbed
Pressure Type
Absolute
Primary Type
PRESSURE SENSOR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TruStability™ NSC
Supply Current
1.5mA
Termination
PC Pin
Voltage Rating
5V
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Honeywell NSCDANN015PAUNV Datasheet
Download the complete datasheet for Honeywell NSCDANN015PAUNV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

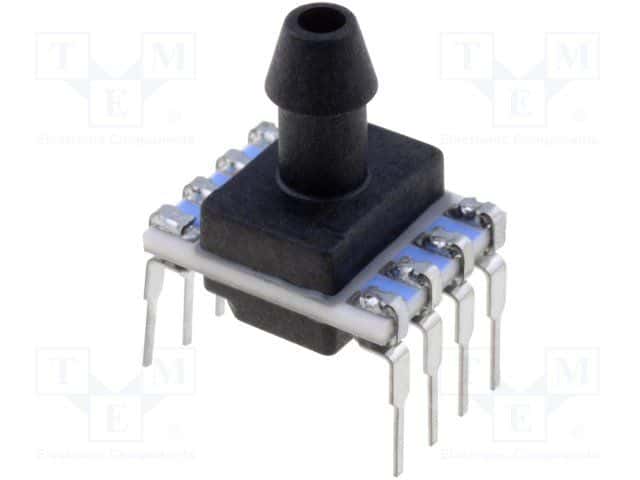

Product Images
