Differential pressure sensor with a 100PSI operating pressure range and a maximum of 250PSI. Features a Wheatstone bridge analog output and I2C interface. Operates from 1.8V to 12V DC supply voltage with a maximum supply current of 2mA. Accuracy is 0.25%, with an operating temperature range of -40°C to 85°C. Through-hole mountable DIP package with barbed port style and PC pin termination.
PackageDIP
Current1.5mA
Voltage Rating5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell NSCDRRN100PDUNV technical specifications.
General
Accuracy
0.25%
Package/Case
DIP
Height
6.16mm
Interface
I2C
Length
10mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
250PSI
Max Supply Current
2mA
Max Supply Voltage (DC)
12V
Min Supply Voltage (DC)
1.8V
Max Supply Voltage
12V
Min Supply Voltage
1.8V
Mount
Through Hole
Nominal Supply Current
1.5mA
Operating Pressure
100PSI
Operating Supply Voltage
5V
Output Type
Wheatstone Bridge, Analog
Port Style
Barbed
Pressure Type
Differential
Primary Type
PRESSURE SENSOR
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TruStability® NSC
Supply Current
1.5mA
Termination
PC Pin
Voltage Rating
5V
DC Rated Voltage
5V
Width
6.99mm
Compliance
RoHS
Compliant
Datasheet
Honeywell NSCDRRN100PDUNV Datasheet
Download the complete datasheet for Honeywell NSCDRRN100PDUNV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

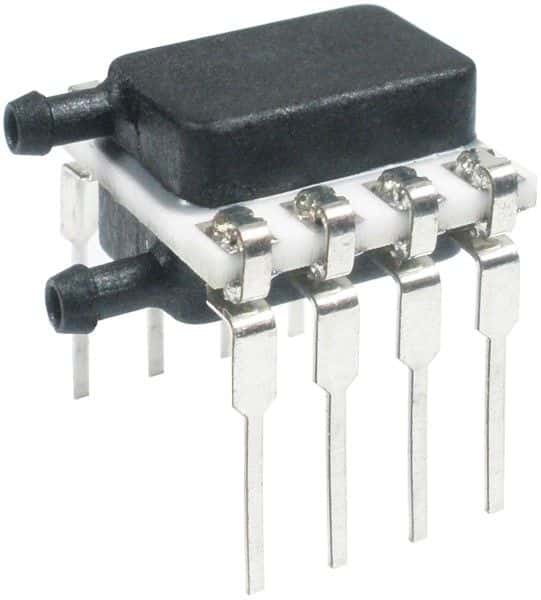

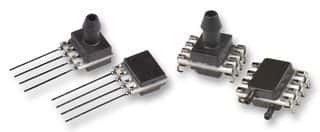

Product Images
