Honeywell
NSCSDRN060MDUNV

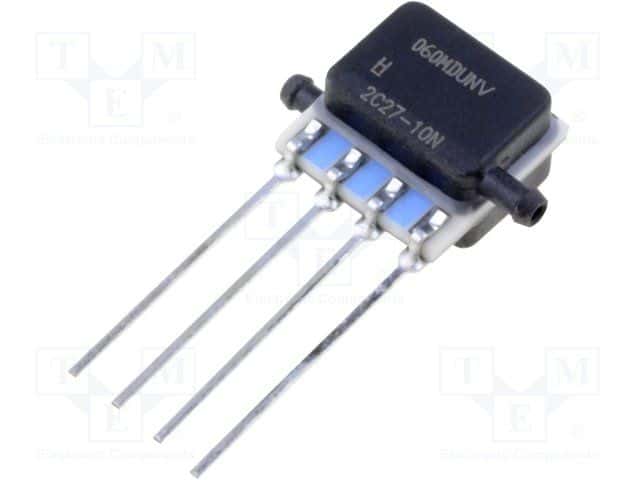

Board Mount Pressure Sensor -0.06bar to 0.06bar Differential 4-Pin SIP Module
PackageSIP
Current1.5mA
Quick Jump:
Technical Specifications
Honeywell NSCSDRN060MDUNV technical specifications.
General
Accuracy
0.25%
Package/Case
SIP
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
12.33PSI
Max Supply Voltage
12V
Min Supply Voltage
1.8V
Operating Pressure
0.87PSI
Operating Supply Voltage
5V
Output
ANALOG
Output Type
Wheatstone Bridge, Analog
Package Quantity
1
Port Style
Barbed
Pressure Type
Differential
RoHS Compliant
Yes
Series
TruStability® NSC
Supply Current
1.5mA
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Honeywell NSCSDRN060MDUNV Datasheet
Download the complete datasheet for Honeywell NSCSDRN060MDUNV to view detailed technical specifications.
