Current4mA
Voltage Rating5V
MountingStud
Quick Jump:
Technical Specifications
Honeywell PX2AF1XX300PSAAX technical specifications.
General
Accuracy
0.25%
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Pressure
1000PSI
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Stud
Nominal Supply Current
5mA
Operating Pressure
300PSI
Operating Supply Voltage
5.25V
Output Type
Analog Voltage, Voltage, Analog
Package Quantity
40
Port Style
Threaded
Pressure Type
Sealed Gauge
Primary Type
PRESSURE SENSOR
Radiation Hardening
No
Ratings
IP65
Reach SVHC Compliant
No
Series
PX2
Supply Current
4mA
Termination
Connector
Voltage Rating
5V
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Honeywell PX2AF1XX300PSAAX Datasheet
Download the complete datasheet for Honeywell PX2AF1XX300PSAAX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

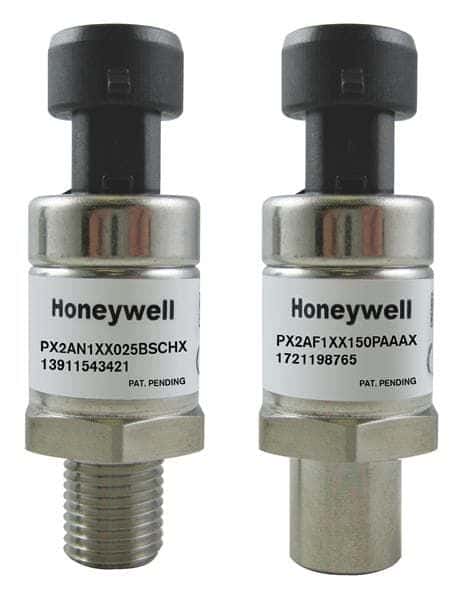

Product Images
