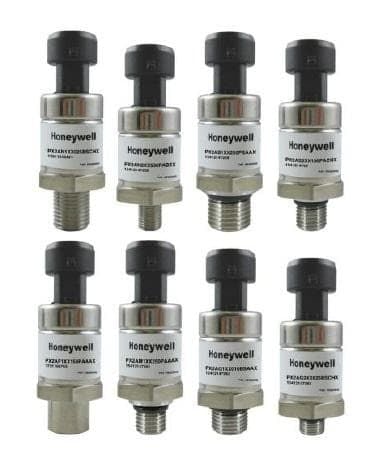

The PX2 pressure sensor is a sealed gauge device with an operating temperature range of -40°C to 125°C. It has a maximum supply voltage of 5.25V and a nominal supply current of 5mA. The sensor provides an analog voltage output of 30V. It is designed for industrial applications and is not radiation hardened.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Honeywell PX2AG1XX025BSAAX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Accuracy | 0.25% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Pressure | 1000.76PSI |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Nominal Supply Current | 5mA |
| Operating Pressure | 362.59PSI |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 5.25V |
| Output Type | Analog Voltage, Voltage, Analog |
| Output Voltage | 30V |
| Package Quantity | 1 |
| Port Style | Threaded |
| Pressure Type | Sealed Gauge |
| Primary Type | PRESSURE SENSOR |
| Radiation Hardening | No |
| Series | PX2 |
| Termination | Connector |
| RoHS | Compliant |
Download the complete datasheet for Honeywell PX2AG1XX025BSAAX to view detailed technical specifications.
